2835软灯条

2835软灯条180灯8mm

Model NO	LGE2835-WN180-8MM

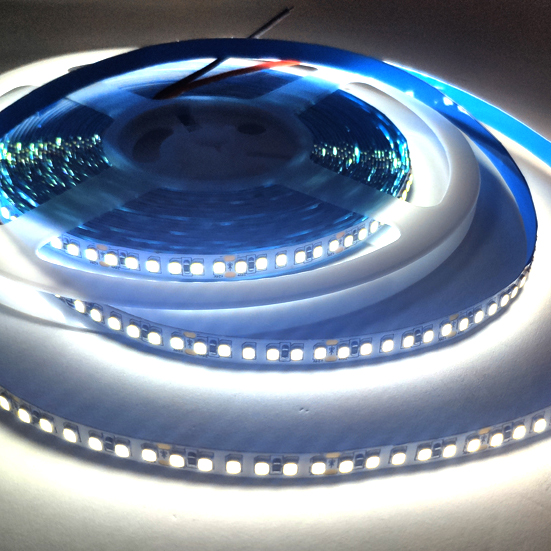

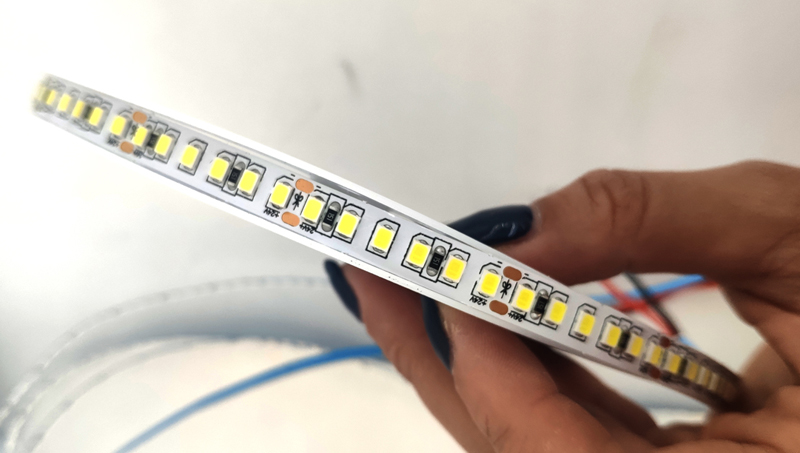

Product Name	SMD2835 180LEDS/M LED strips
PCB Width	8MM
LED Qty/m	180leds/m 2835
PCB materials	3Oz Double-sided coated pure copper
Voltage(V)	12V DC / 24V DC
Rated Power(W)	18W/M, 90W/5M
Luminous(lm/m)	100LM/W
LED Chip Brand	Sanan(Epistar optional)
LEDs material	packaged by 99.99% pure gold wire
LED BINs	3-Step/5-Step, same BIN for each order
LEDs Supplier	Honglitronic (Osram/Samsung optional)
CRI(RA>)	CRI80(CRI 90 optional)
Color	W/WW/CW/R/G/B/Y/O/UV/Pink
Color Tempertature	2200K,2700K,3000K,3500K,4000K,6000K,7000K
IP Rate	IP20 (IP65/IP67/IP68 optional)
View Angle	120
Product Size(mm)	8*5000mm

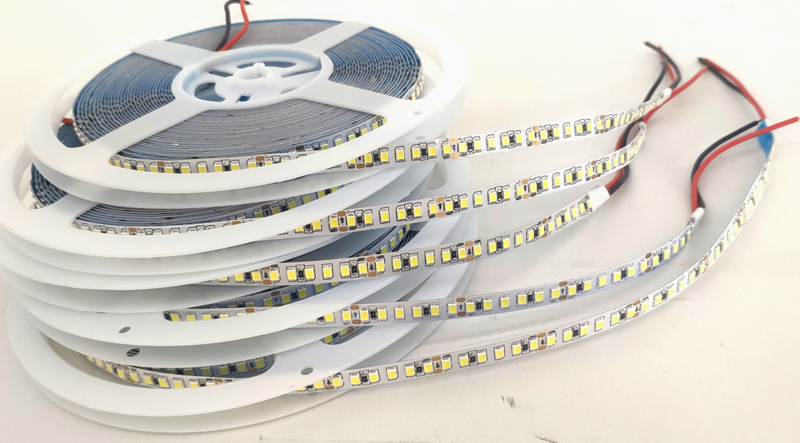

Package(m/rol)	5M/roll
Working Temperature(ºC)	-80
Cutting Unit	12V-3 LEDs(19mm) 24V-6 LEDs(38mm)
Adhesive Tape	9495 3000LSE 3M tape
Dimmable	Yes
Certificate	CE,Rohs,FCC.
Warranty	2-5 Years
